Model 2075 is designed for speacial projects that require longer distance between the handrail and wall, which is a new model for railing hardware. The difference between handrail wall bracket model 2000.042 is this model allows more wall distance for bigger handrail such as 48.3mm and 50.8mm.

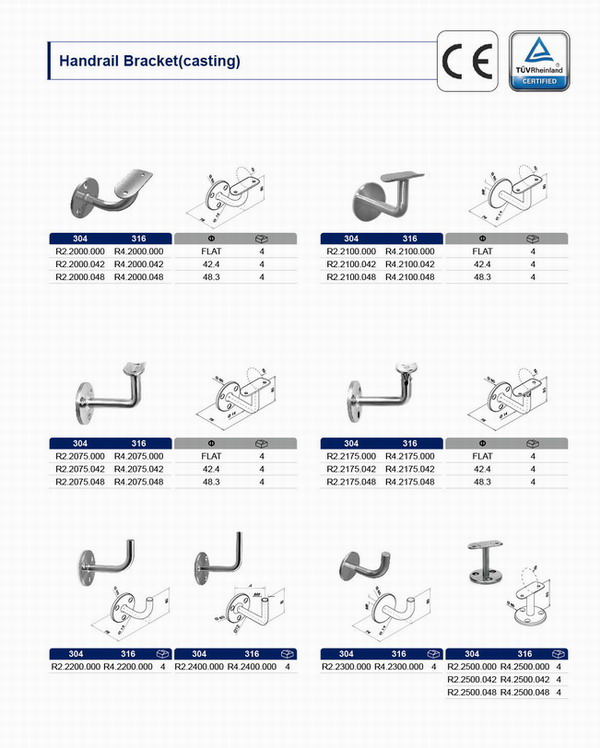

Code	Tube	MOQ
R2.2075.000	Flat	100
R2.2075.042	42.4	100
R2.2075.048	48.3	100

Basic dimensions:

- Material: AISI304, AISI316

- Base plate: 60mm

- Bracket: 25x63mm

- Rod: 14mm * 75x50mm

- Available for handrail: 42.4mm and 48.3mm round handrail tubes, flat square handrail tubes.

- Package: 4pcs per box, 40pcs per carton

To connect the tube and the fitting, we have two options/suggestions to the end users:

1- Straight hole with M8 screws or wood screws.

2- Countersunk hole for M8 countersun head screws.

Model 2075 is produced by precision casting and the finish work is from our machining shop with CNC and polishing equipments. All the fittings you purchase from Raising are 100% checked before shipping.

Welcome to contact inquiry@sinoraising.com for more infos.

Certificates:

- CE ceritificate(EN1090-1) approved by TUV Rheinland.

- ISO

- DOP(Declaration of Performance)
